300kg/H Plastic PET Strap Making Machine/ Extrusion Machine PET Packing Belt
PRODUCT DESCRIPTION
PET strap is an alternative to steel strapping, polypropylene strapping material such as new environmentally friendly
packaging materials, mainly used for all kinds of Strapping, such as pallets, cartons, boxes, plastic boxes and other
types of bundled packaging. It also can be used for direct binding, for example: cotton, steel, timber and other packaging.
Now it widely used in cotton, steel, paper, chemical fiber, electronics, food, timber, building materials, packaging and other industries area.
Main features are as follows:
(1)Safety and environmental protection:safe for use, not easy to hurt, according with EU environmental directives, for example ROSH.
(2)Low cost:It is the most cost-effective in new environmentally friendly packaging materials products.
(3)Easy to use:Suitable for fully automatic balers, manual balers and other packaging machinery quickly and convenient to use.
(4)Excellent toughness: Between -50 ~ 100 ºC temperature, it is fully capable of normal use, and maintains excellent flexibility.
(5)Look beautiful: Finish bundled items look beautiful, does not pollute the items, never rust.
(6)Very good strength: Can provide up to 470 MPA tensile strength to protect the safety of Strapping.
PET Strap Production Line Machine List
| NO. | Item | Specification |
| 1 | Power | According to customer's factory voltage |
| 2 | Material | PET raw material or 100% PET bottle flakes recycled |
| 3 | Capacity | PETJT90:200kg/h PETJT100:250kg/h PETJT125:350kg/h |
| 4 | Product size | Width:9-32mm Thickness:0.6-12mm |
| 6 | Mid-height of extruder | 7000mm |
| 7 | Installation power | PETJT90:200KW PETJT100:250KW PETJT125:300KW |
| 8 | Humidity | <85% |
| 9 | Temperature | 0-40 degree |
| 10 | Cooling tower capacity | 30T/H or 50T/H |
| 11 | Installation Dimensions | PETJT90:45*2.0*7.0M PETJT100:45*2.0*7.0M PETJT125:60*3.0*8.0M |
| 12 | Product color | Green/Black/Pink/Yellow |
| 13 | Factory dimension | 35m*(3~6)m*(4~6)m 45m*(3~6)m*(4~6)m If your factory not big enough,please contact with us,our engineer can according to your size to design |
DETAILS ABOUT PET STRAP MAKING MACHINE
1. Components of pp pet packing belt machinery:

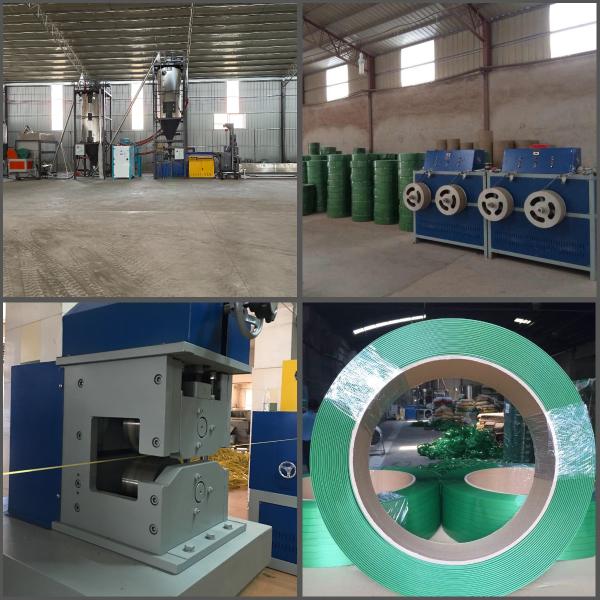

PET Strap Production Line consists of dehumidifying and crystallizing system, extruder, screen changer, mold, oven, haul-off, and winder, etc.
2. Production Process of PET Machinery
Material→ Dehumidifying and Crystallizing → Extruding → Mold → Cooling → Haul-off →Oven Heating →Pre-heating → Drawing and Stretching →Drawing and Stretching → Embossing →Hot Forming → Drawing → Winding
3. Application
With 100% bottle flakes recycled material, to produce various specifications of PET strap. It has been widely used in steel, chemical industry, aluminum, paper making, brick kiln, tobacco, electronics and textile and timber industries.
Features of PET packing strap production line:
1) PP PET raw materials do not need to separate the dry and water treatment . There are automatic circulation on preheating and drying that save a large number of equipment investment and reduce the production cost by 30%;
2) Utilizing the retrieving bottle slice as raw materials that reducing the cost to a great extent;
3) With the multi-purpose machine, produce the PP PET straps in different specifications directly and dont need to change the mould head;
4) Comparing with new polyester slice, the transparency of products is just the same, but the tensile strength and shock resistance are up to the international grade;
5) Low Energy consumption, but high production capability;
6)Easy to operate, save the manpower and two persons for one production line on average.
